The Draethen Lead Mines

The lead mines at Draethen are probably the oldest mines and industrial sites in Monmouthshire, dating back to pre-Roman times. It's known that in 1665 William Morgan of Tredegar House leased Machen Silver-Lead mines to Robert Standfield of Pentyrch and William Sawer of Llantrisant (though there were lead mines on the Northern side of Machen). The various mines have been worked on and off until the mid-19th century when, finally, worthwhile mining became impossible. The whole of the hillside between Draethen and Machen is a complete jumble of old pits, levels and shafts and well worth exploring.

The North-Eastern mines

Draethen Mine - ST 2152 8764

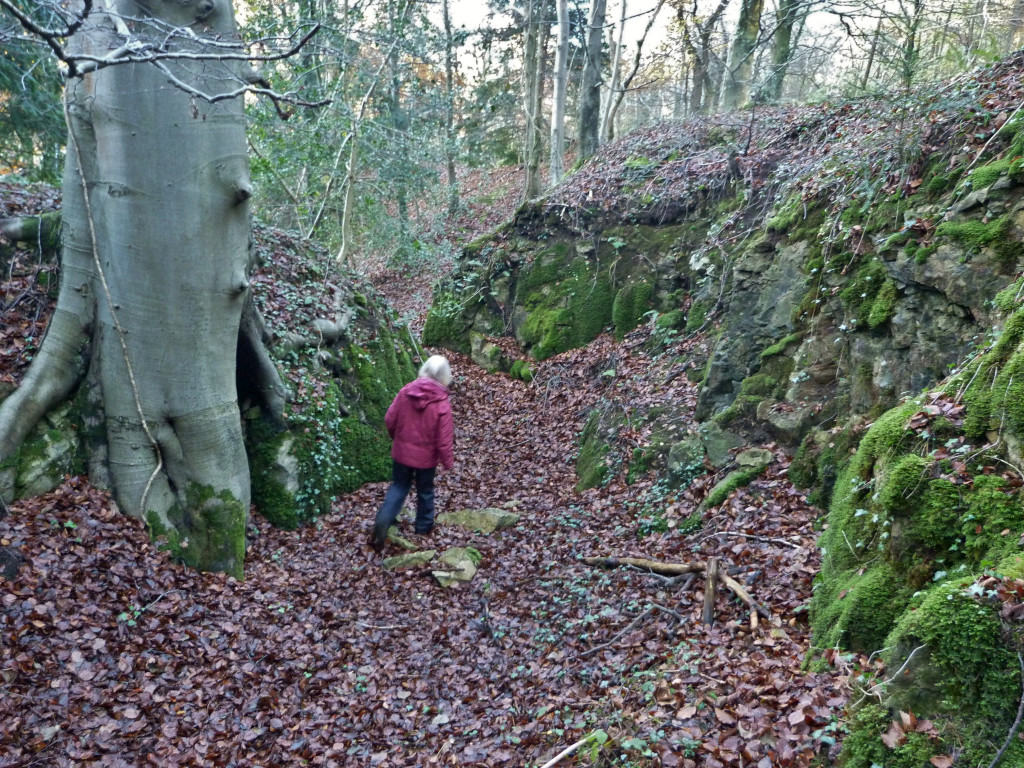

The North-Eastern string of very old pits run up the hillside from Rhyd-y-Gwern on the lane between Draethen and Machen. These are probably the oldest of the Draethen mines, dating back to Roman times (I'm told they've found Roman credit card receipts down there). Most fenced off as they are quite dangerous to the unwary but at least one is used by a caving club so carefully cross the stile to peer in to the depths, complete with access ladder.

Helen Mountain writes :- "I have been researching ancestors who were lead/silver miners. I came across William Armstrong 1711-1781 who had a lease at Machen in 1770. It reads 'Hugh Jones of Gelliwastod Esq on behalf of Thomas Morgan of Tredegar Esq to William Armstrong of Ridgwern, Co Glamorgan, miner. Memorandum of agreement to lease for 6 years the right to work a vein of lead running up form the River Rumney under Ridgwern Lane to a field called Cae Fae, above the said lane, being part of Ridgwern Farm in the Ht. of Ridgwern.' I have managed to locate it on the Tithe map and also the cottage where he lived. He had previously mined lead in Rhandirmwyn in Cardiganshire from 1744-1752 then moved to Machen and mined there the rest of his life. He had several sons who became Lead mine Masters working in esgair-mwyn Cardiganshire and Rhydymwyn Flintshire, but one son stayed in Machen and continued mining there into the 19th century."

Draethen Mine	Draethen Mine	Draethen Mine	Draethen Mine
Draethen Mine	Draethen Mine	Draethen Mine	Draethen Mine

Draethen Little Mine - ST 2156 8766

Draethen Little Mine	Draethen Little Mine	Draethen Little Mine	Draethen Little Mine

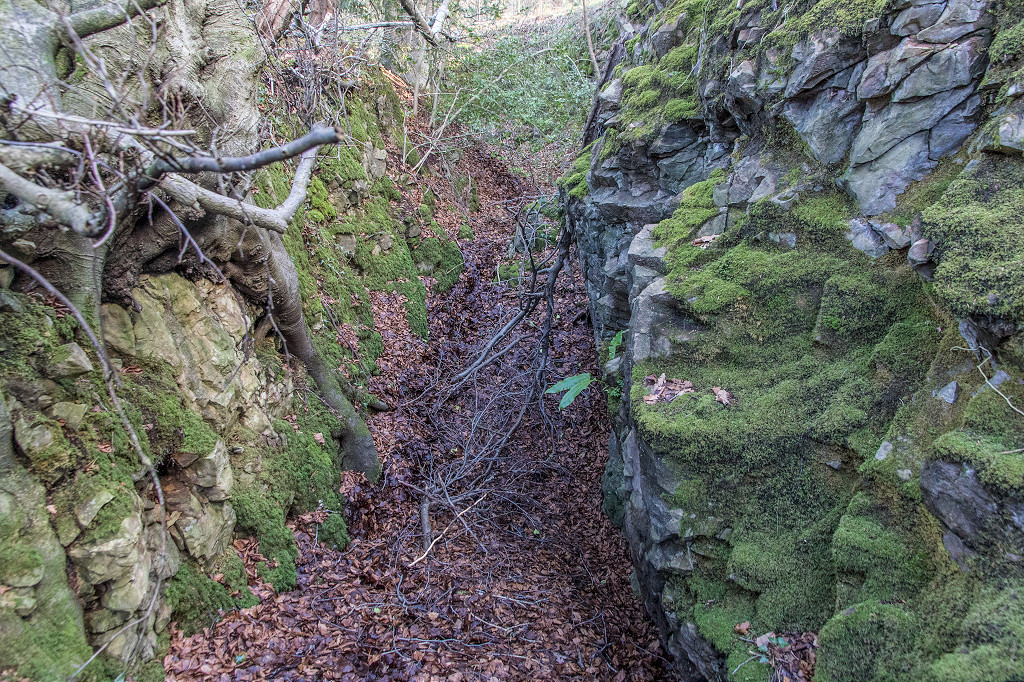

Canyon behind Little Mine	Canyon behind the Draethen Mine	Canyon behind the Draethen Mine

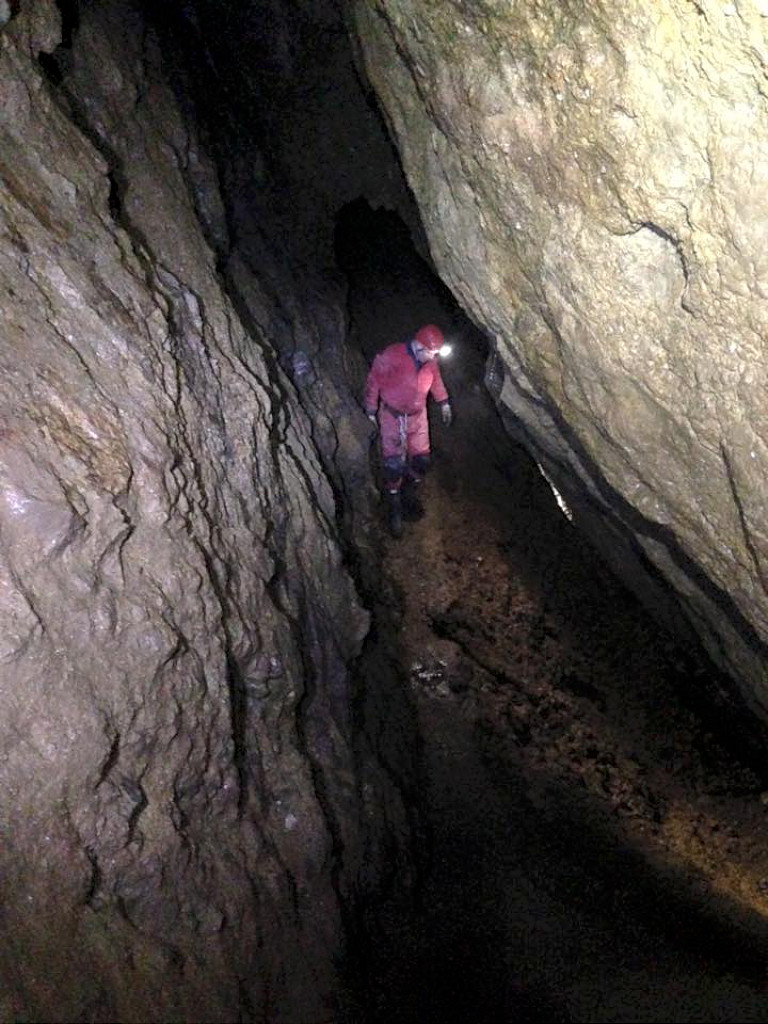

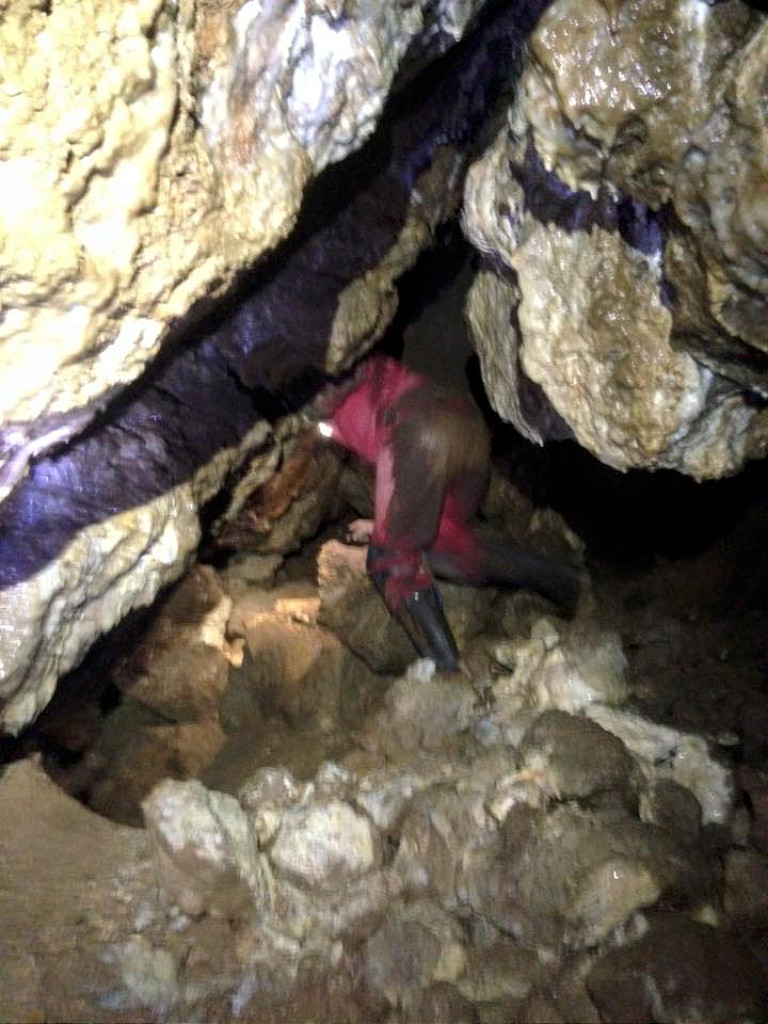

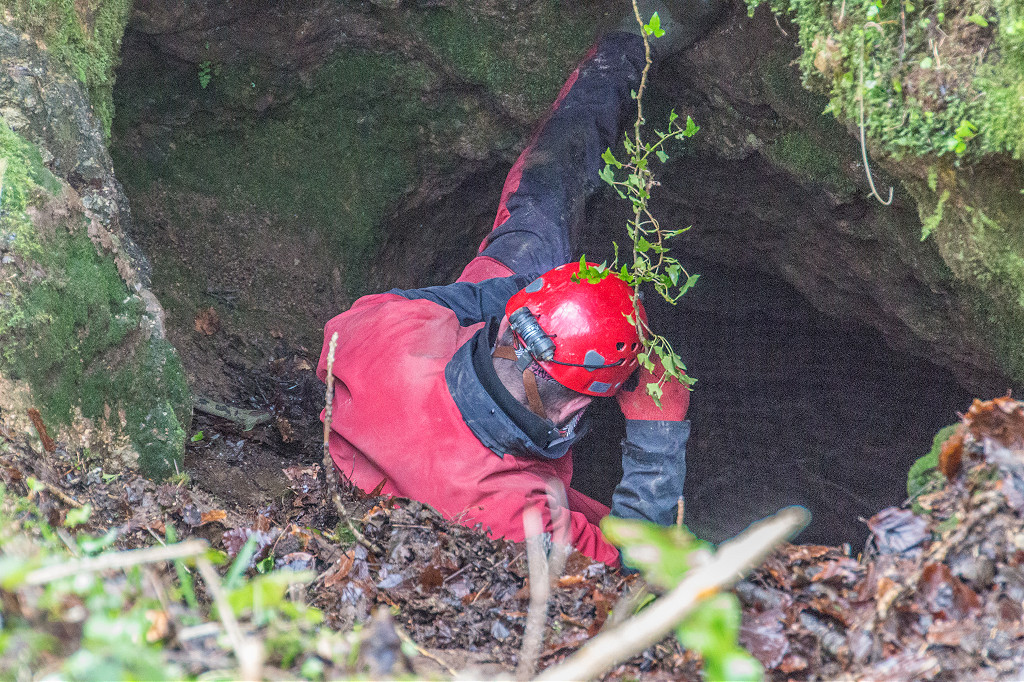

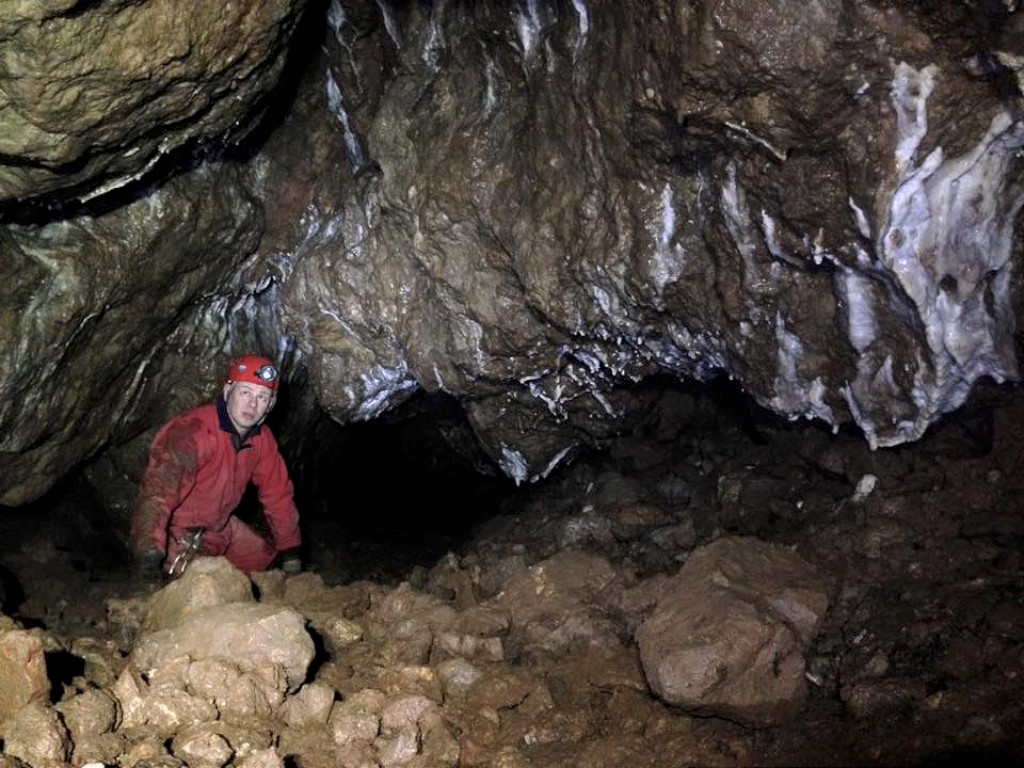

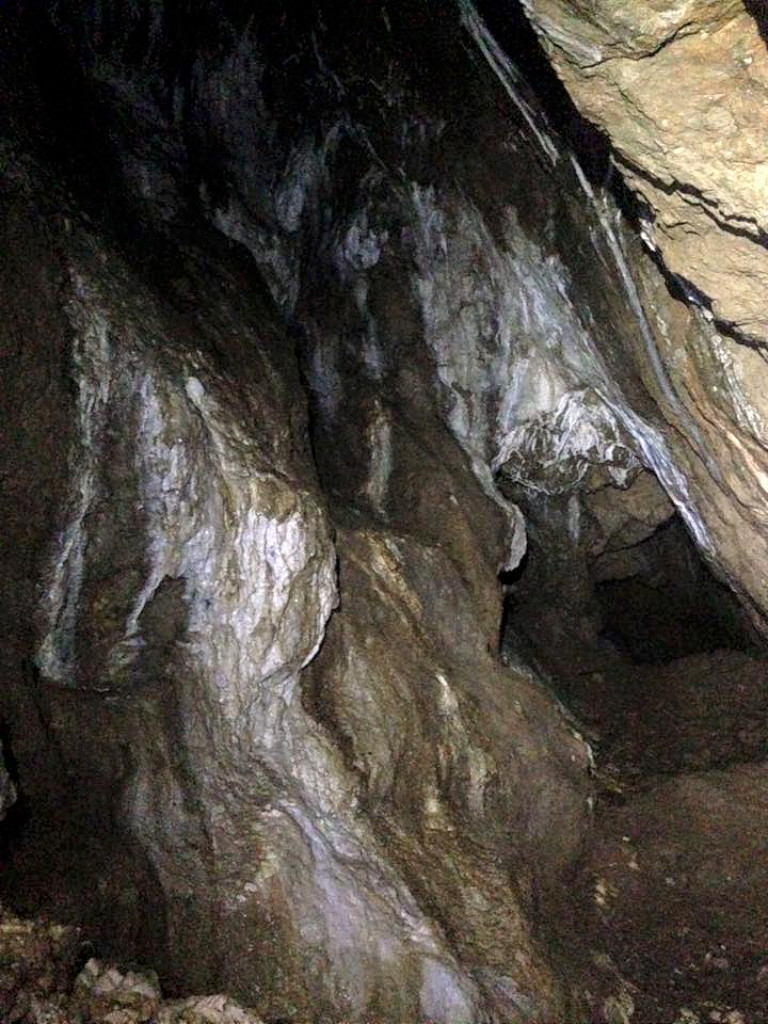

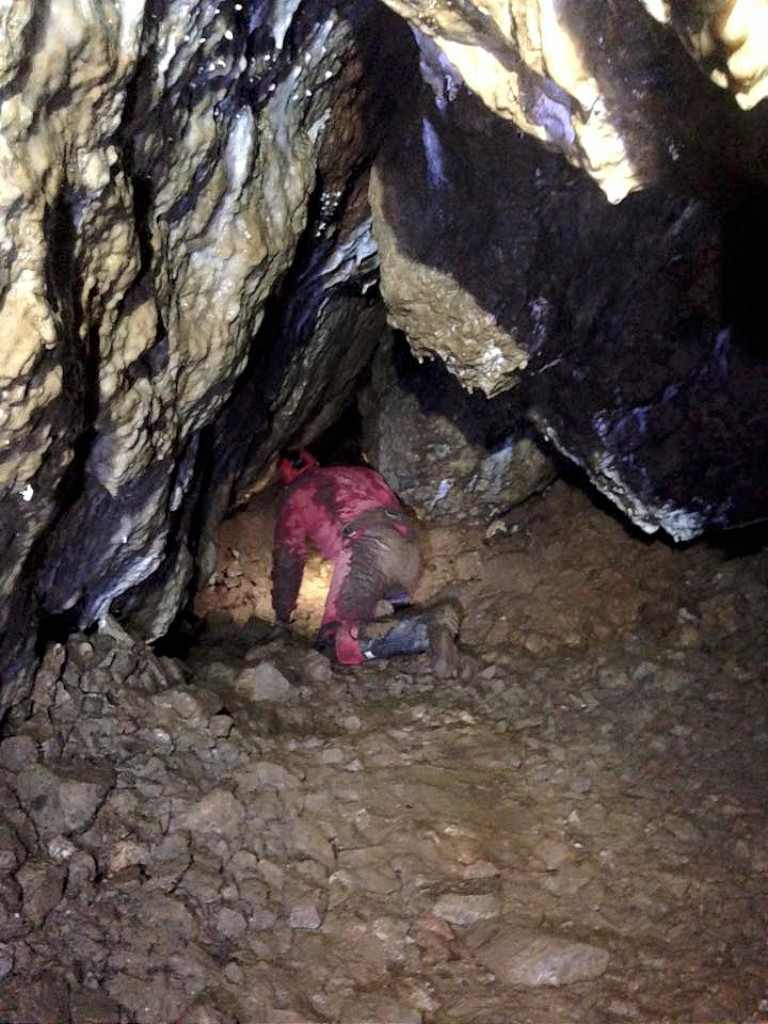

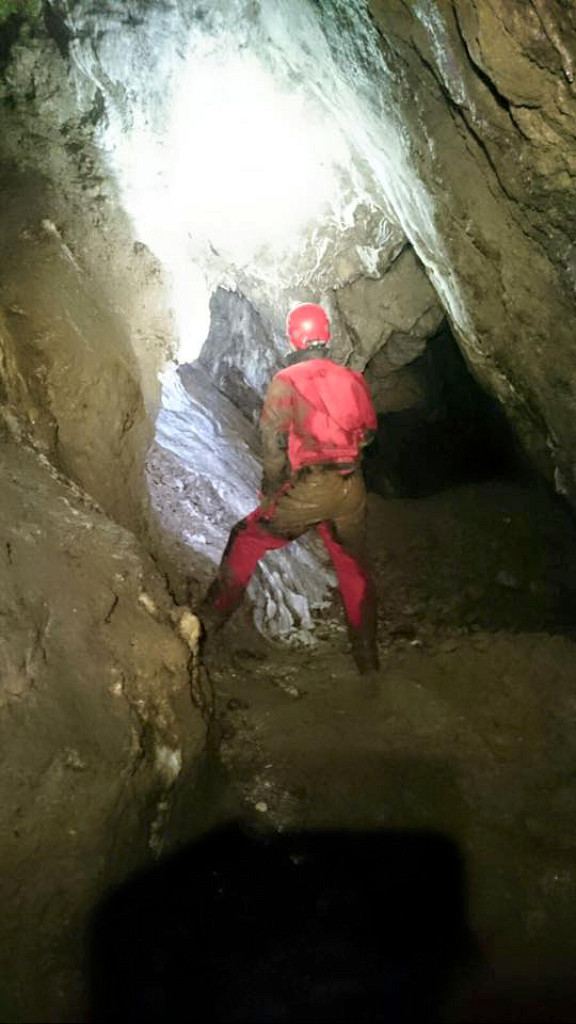

Draethen Roman Mine - ST 2173 8770

Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine
Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine
Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine
Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine
Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine	Draethen Roman Mine
Level below Roman Mine	Level below Roman Mine	Level below Roman Mine	Level below Roman Mine
Quarry at foot of NE Mines

The Central mines

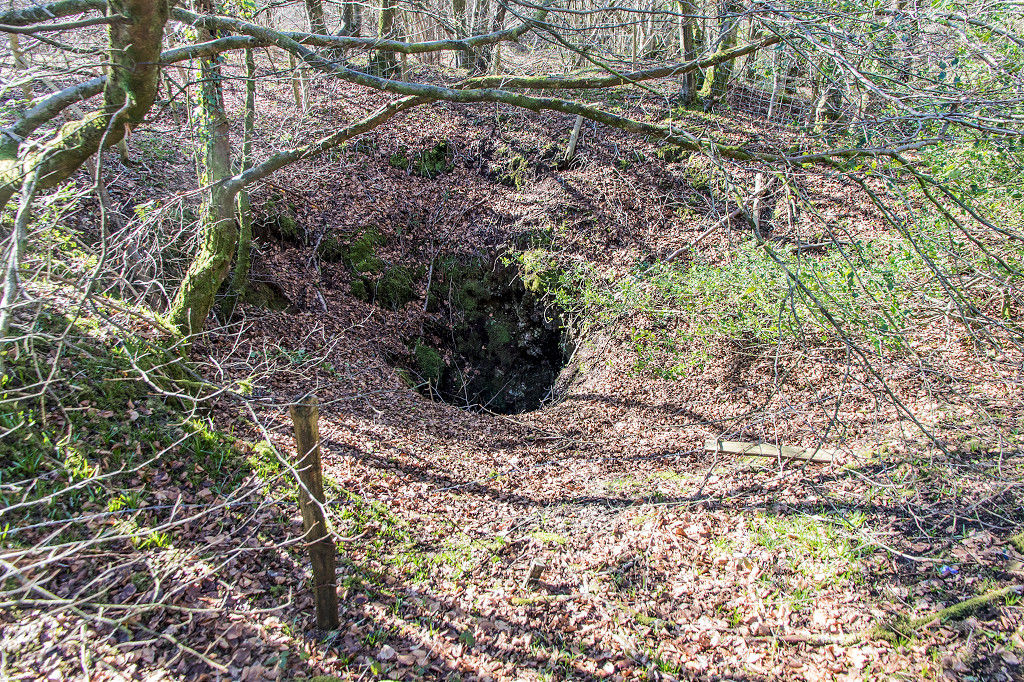

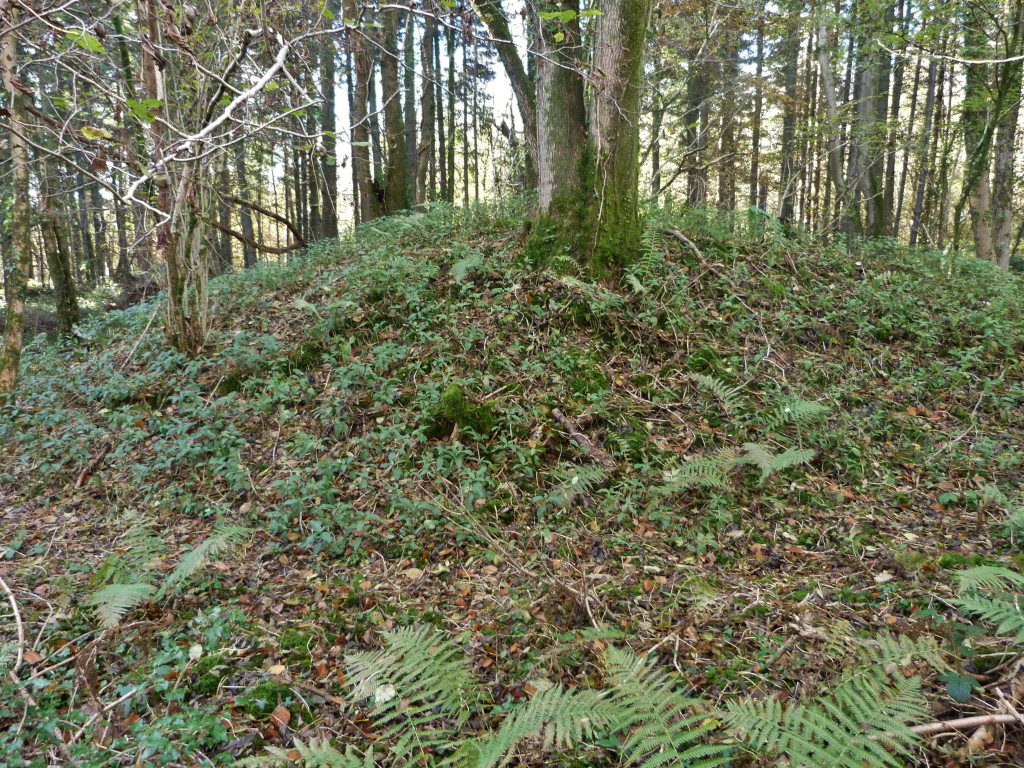

Central mines - ST 2128 8739

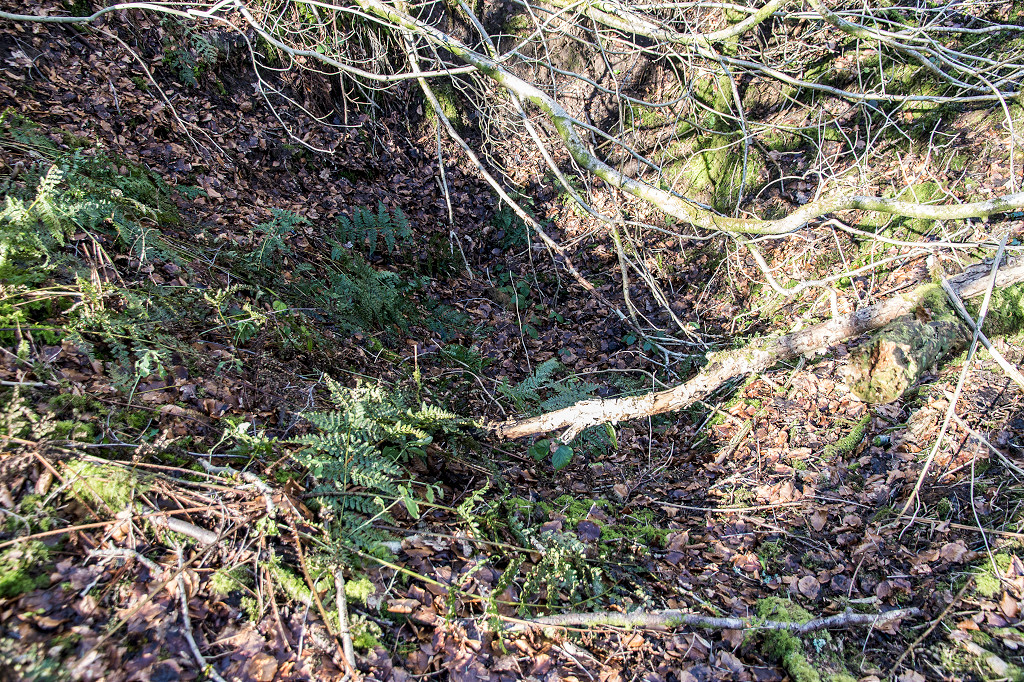

The Central mines are a small group of mines on it's own beyond the top of the North-Eastern mines and above the South-Western group. It appears to be more substantial than the other workings and have had two shafts, marked 'old' in 1875.

Draethen Central Mines pit	Central Mines double shaft	Central Mines double shaft
Central Mines double shaft	Central Mines double shaft tips	The two 1875 old shafts
Central Mines single shaft	Central Mines single shaft	The tips next to the old shafts

The South-Western mines

South-Western mines - ST 2130 8743

The South-Western string of mines have mostly collapsed into shallow depressions. Some may have been worked in Victorian times as there appears to be the route of a watercourse or track leading down to the small quarry and limekilns at Primrose Cottage, ST 2183 8728.

Draethen South-West Mines	Draethen South-West Mines	Draethen South-West Mines	Draethen South-West Mines
Draethen South-West Mines	Pits in the South-Western mines	Watercourse to Draethen Village	Watercourse to Draethen Village

The Clive Mines

Clive Mine, Clive United Mine and West Clive Mine

Clive Mine, Clive United Mine and West Clive Mine were the three named mines, starting work quite successfully in 1850 and, not surprisingly, owned by the Hon. Mr Clive. A tramroad ran from the mines to the dressing floor in Cwm Leyshon where a horse-whim and water wheel were installed. Flooding and ventilation were serious problems and the venture failed in 1854 having only produced about 36 tons of ore that year. Other companies were also reported to be working in the general area, 'The South Wales Mining Co', 'Withers and Co', 'John Edmunds' and 'The Caerphilly and Carfunin Co'.

In 1871 they were re-opened by the Glamorganshire Mining Co. but closed almost at once. Over time, which name belonged to which location has become very obscure. This has not been helped by the quarrying activites which has removed a number of the mine sites and the 1875 OS map simply marks them all as 'old'. The Clive Mine in Coed Llwyn Hir is the only one definitely identified. It can be assumed that the West Clive mine was near Penhow Farm. However the NMRS article believes the Draethen Mine in the North-East group to be the Clive Mine with the Coed Llwyn Hir workings being the Clive United Mine.

According to the Grassington Mines “Merchants Ledger 1849 – 1862” of the Grassington Mines near Skipton, North Yorkshire, on September 24th 1854 the Clive United Mines sold a waterwheel, roller crusher etc to the Grassington Lead Mines. If anyone has more info, please drop me a line.

Cwm Leyshon mines - ST 2112 8712

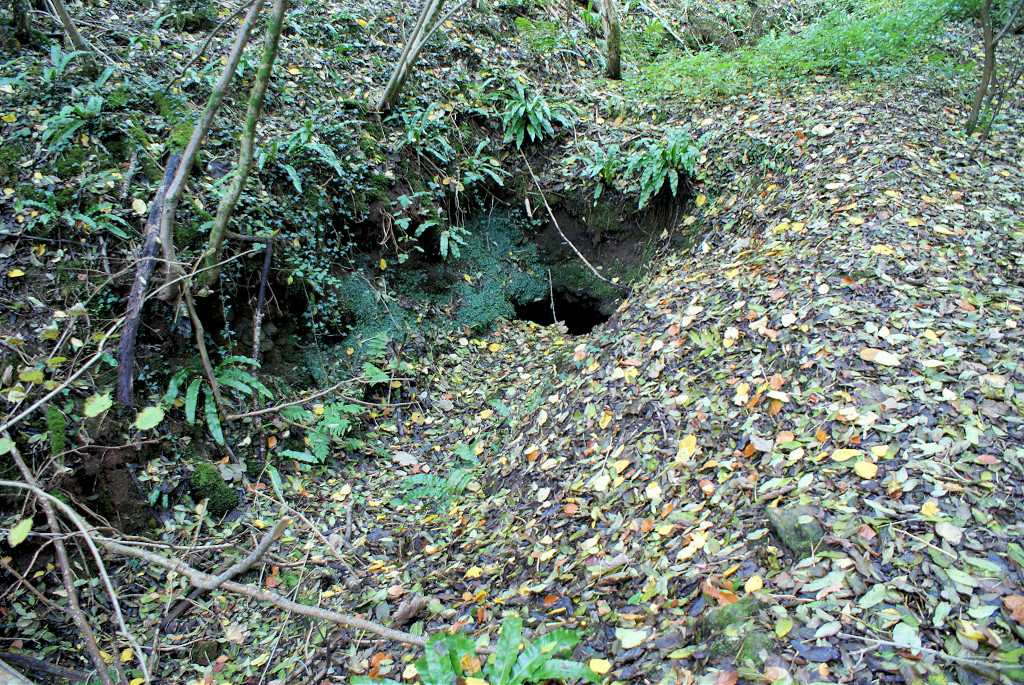

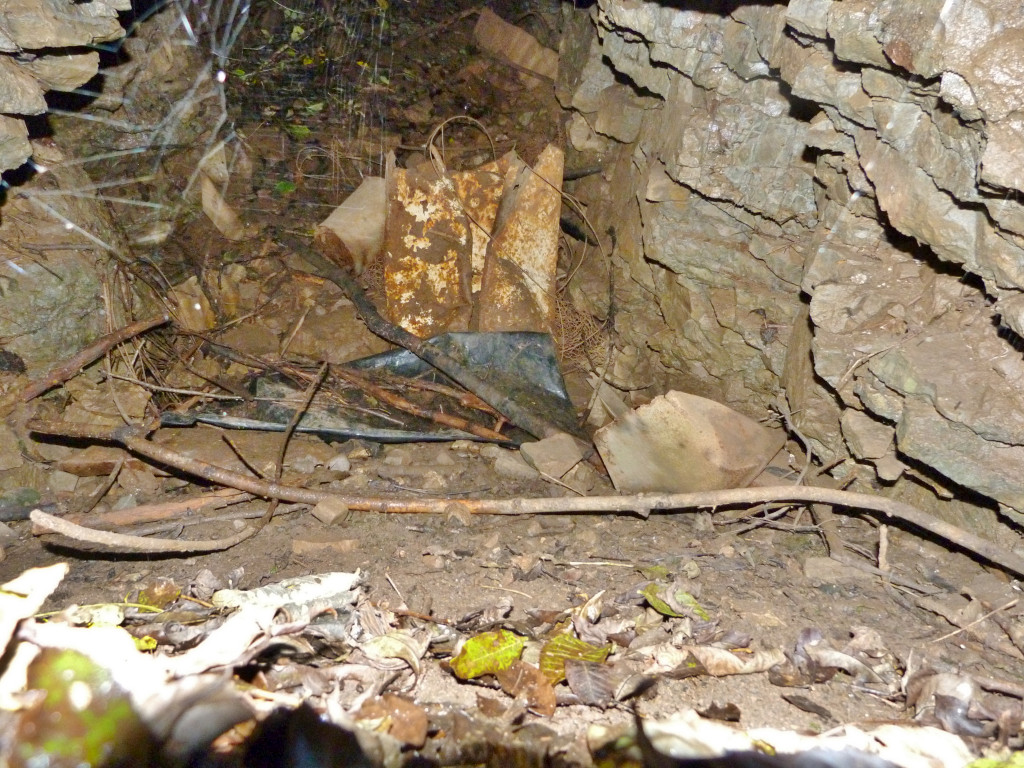

Lots of remains in the undergrowth around here. Just after the quarry entrance and the lower limkilns, the tramway from the Clive mines to the washery comes in from the left on a low embankment as it reaches the upper limekilns and an adit beside the path. On the right are the walls and foundations of a couple of buildings. Another small adit is off on the left further up the hill and an open adit is at the bottom of a pit where the paths split. Further up the left hand path the site of a rectangular airshaft is fenced off and another collapsed airshaft can be seen behind the quarry fence. There are lots of other earthworks dotted all over this area that need more exploration.

Cwm Leyshon lower level	Cwm Leyshon upper level	Cwm Leyshon upper level	Cwm Leyshon upper level
Cwm Leyshon upper level	Cwm Leyshon upper level	Cwm Leyshon upper level	Cwm Leyshon upper level
Cwm Leyshon upper level	Cwm Leyshon middle level	Cwm Leyshon middle level	Cwm Leyshon lower level

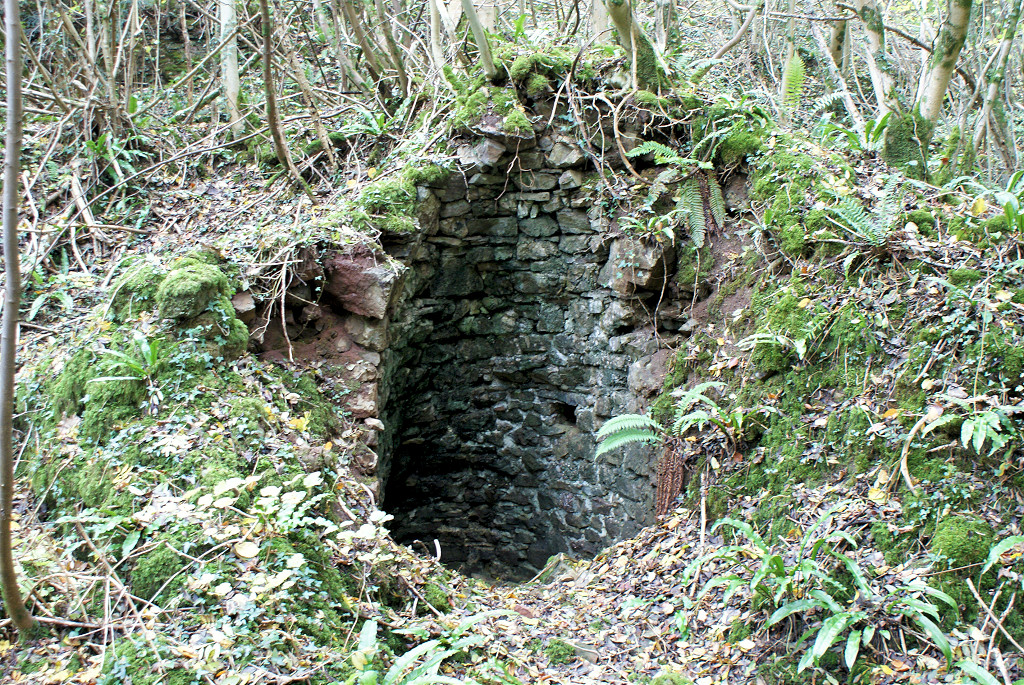

Cwm Leyshon lower level	Cwm Leyshon lower level	Cwm Leyshon lower level	Cwm Leyshon upper limekilns
Cwm Leyshon lower limekilns	Cwm Leyshon leadmines building	Cwm Leyshon leadmines building	Cwm Leyshon leadmines building

Clive Mine - ST 2080 8701

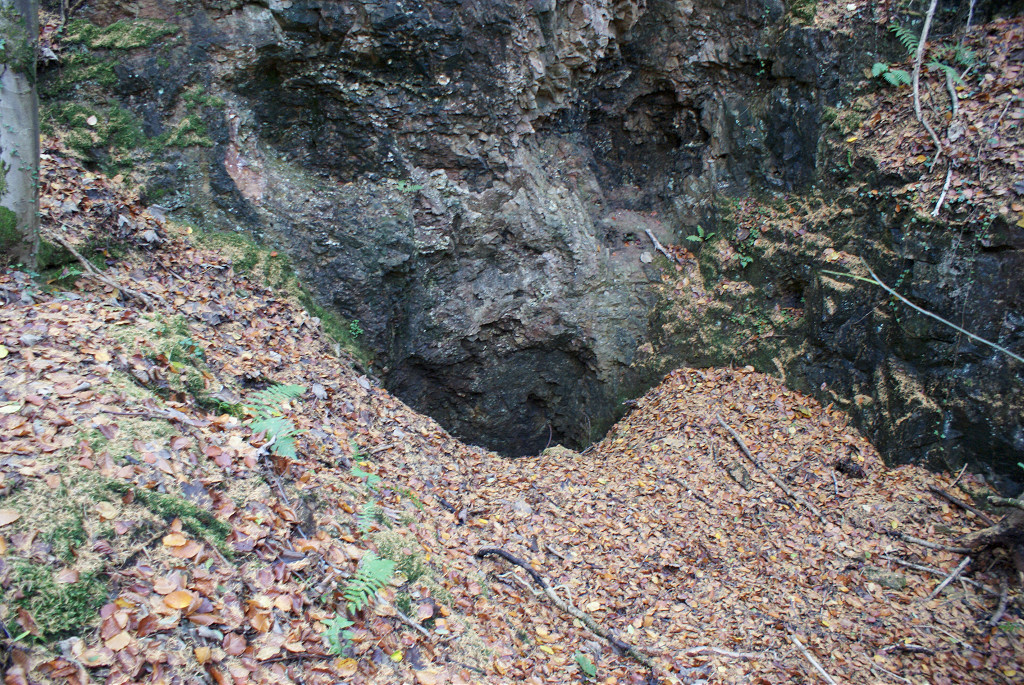

The mines in Coed Llwyn Hir were part of the Clive Mines complex, Clive Mine itself is now right on the edge of Cwm Leyshon Quarry so don't step back for a photo! However, they are well worth a careful look. At the Northern end of a narrow, deep canyon are a shaft or steep level to the left and another blocked level in the end face. The canyon was the start of the tramway down to the washery at Cwm Leyshon Cottage, the route has now been quarried away. From the Clive Mine, the possible route of a tramway leads to mines below Penhow Farm, due to its location this is possibly Clive West Mine.
A large number of very old lead mines and collapses are dotted around Coed Llwyn Hir, some again dating back to Roman times, but re-worked in the 19th Century.

The Clive Mines and Cwm Leyshon	The Clive lead mine	The Clive lead mine	The Clive lead mine
The Clive lead mine	The Clive lead mine	The Clive lead mine	The Clive lead mine
The Clive lead mine	The Clive lead mine	The Clive lead mine	The Clive lead mine
The Clive lead mine	The Clive lead mine	The Clive lead mine

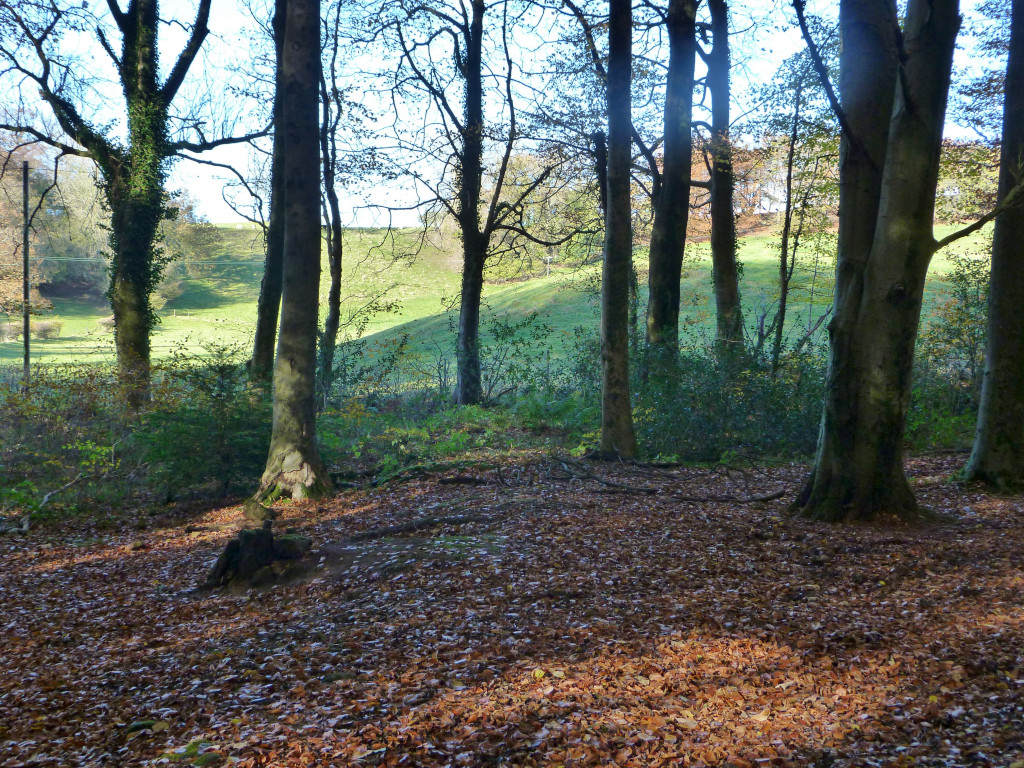

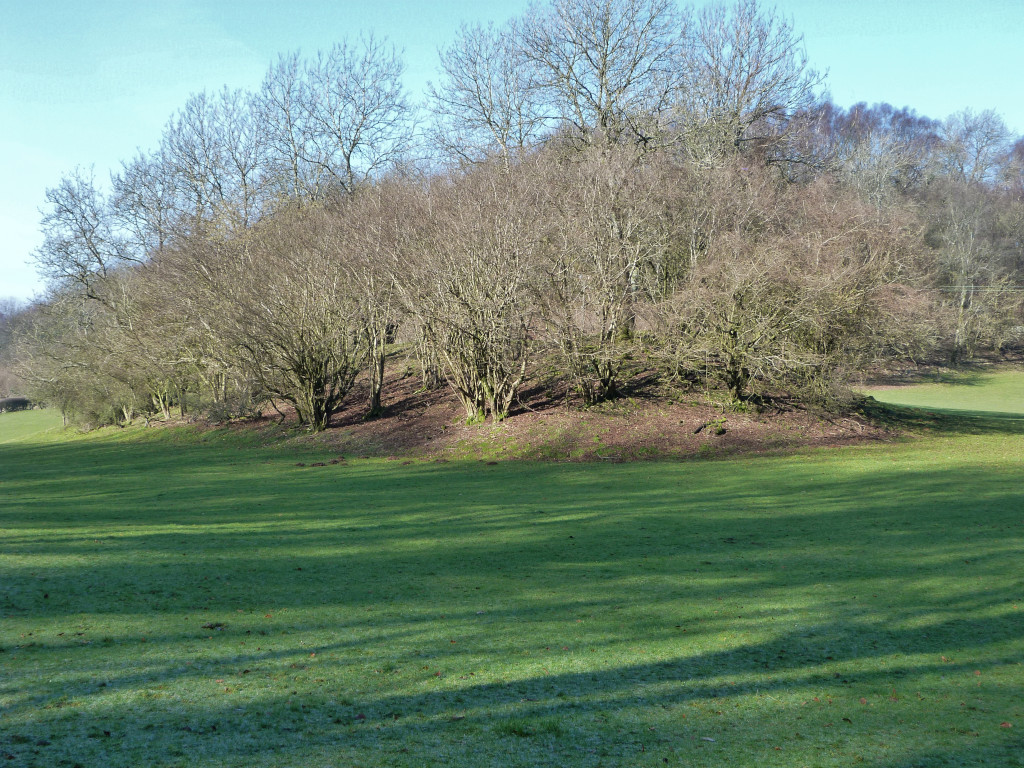

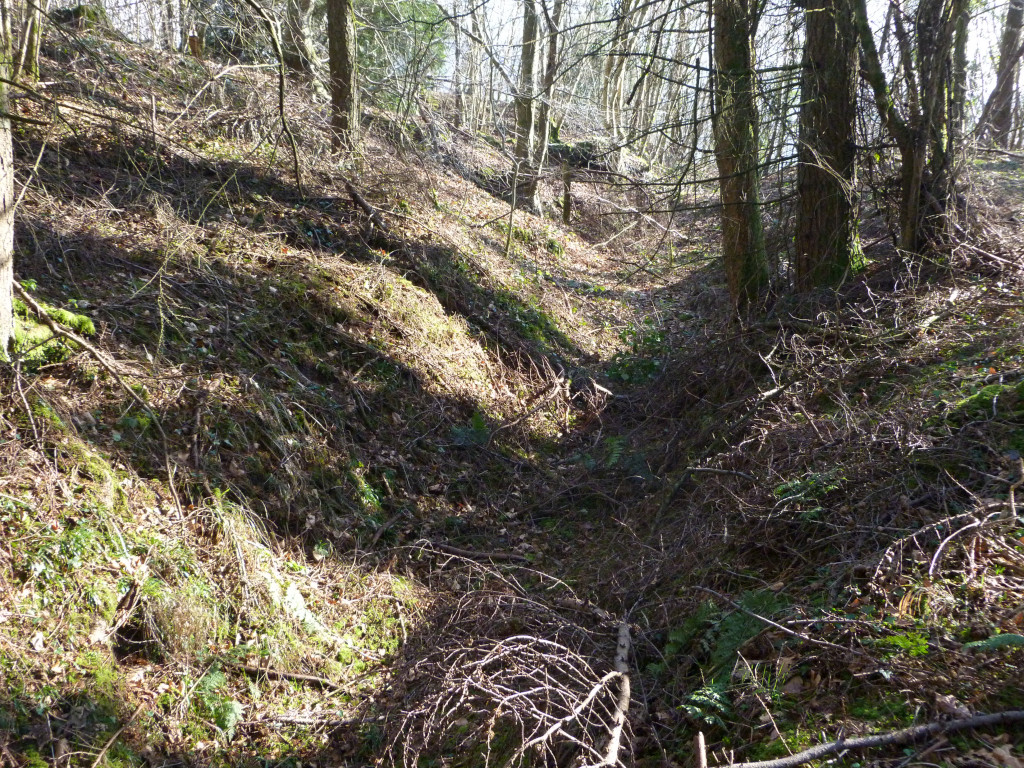

Clive West Mine - ST 2069 8710

Clive West Mine tips	Clive West Mine tramway	Clive West Mine tramway	Clive West Mine tramway
Clive West Mine tramway	Clive West Mine tramway	Clive West Mine and tramway	Clive West Mine and tips
Clive West Mine			Tip below the Clive lead mine

Maen Llwyd mines

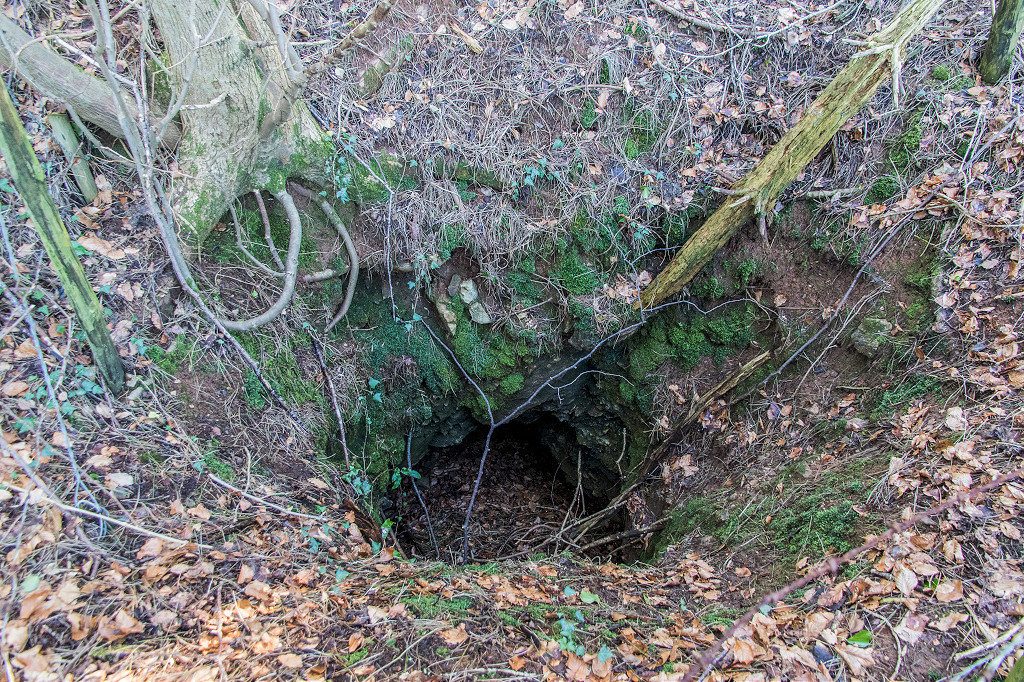

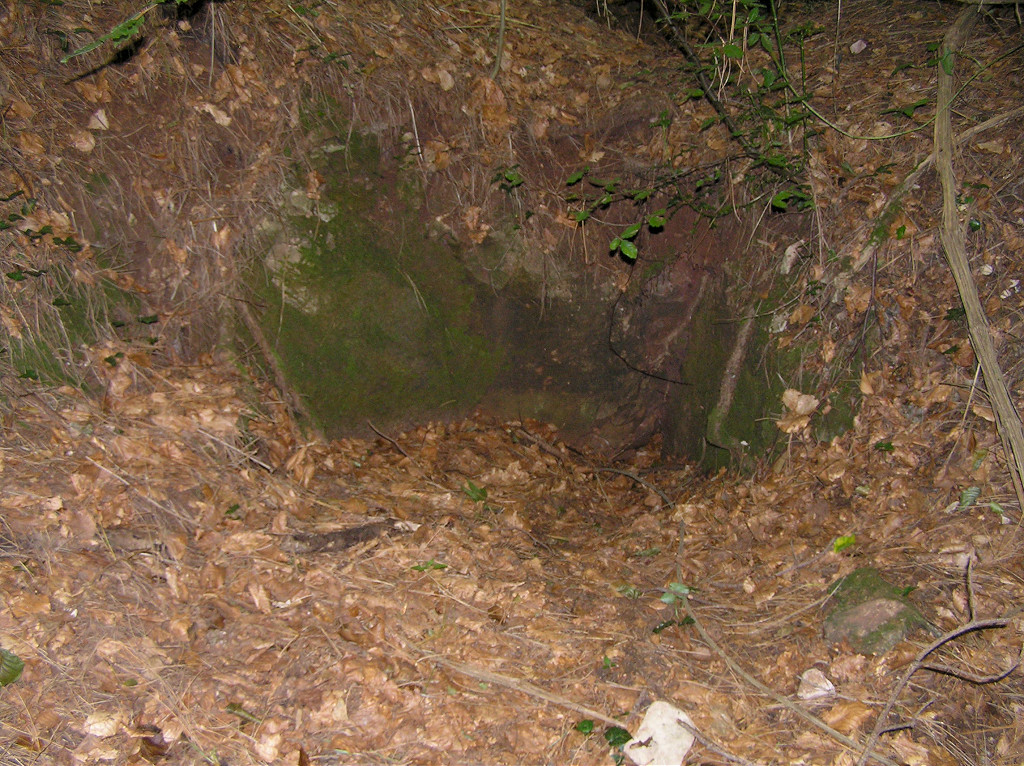

Maen Llwyd mines - ST 2054 8697

Once thought to be Roman, these haphazard small workings are more likely to be from the 18th century. They are about 10ft deep, up to 7ft high and 10ft long.

Maen Llwyd Mines	Maen Llwyd Mines	Maen Llwyd Mines	Maen Llwyd Mines
Maen Llwyd Mines	Maen Llwyd Mines	Maen Llwyd Mines	Maen Llwyd Mines

Cwm Leyshon Quarry

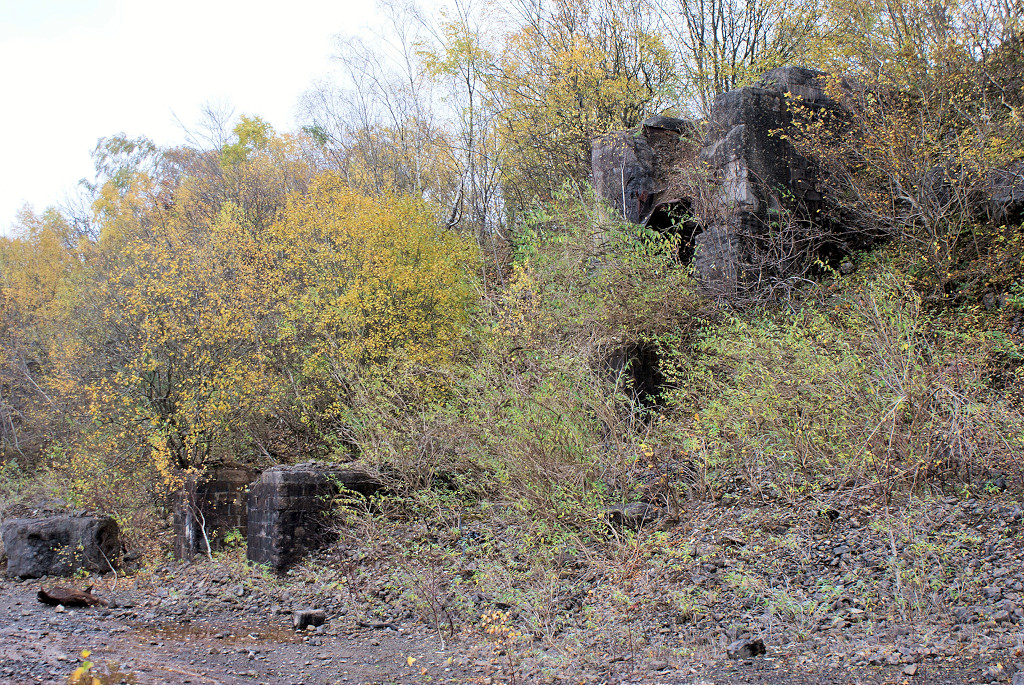

Cwm Leyshon Quarry - ST 2100 8685

A small quarry was in operation here by 1875 but today's massive quarry stems from the roadbuilding of the 1920s. The quarry is dormant rather than closed, leaving the very solid remains of tipping docks, storage bins and buildings, a playground for mountain bikers. Opposite the entrance are two large limekilns which ceased work when the quarry expanded around 1927. Cwm Leyshon Cottage was the site of the Clive mines washery and also the Ruperra Estates Police Station. The cottage is private but a tunnel and other earthworks are believed to still exist.

Cwm Leyshon Quarry	Cwm Leyshon Quarry	Cwm Leyshon Quarry
Cwm Leyshon Quarry	Cwm Leyshon Quarry	Cwm Leyshon Quarry
Cwm Leyshon Quarry tippler	Cwm Leyshon Quarry	Cwm Leyshon Quarry building

The 1829 Iron Bridge - ST 2300 8725

The Iron Bridge across the River Rhymney at Draethen was part of a carriage drive between Ruperra Castle and Machen church. It is cast-iron, dated 1829, and the wrought iron railings were believed to have been made at Rhymney Ironworks.

The 1829 iron bridge at Draethen

The 1829 iron bridge at Draethen

The 1829 iron bridge at Draethen

Acknowledgments, sources and further reading.

Thanks to the Northern Mine Research Society for further information on the Clive United Mines.

The Lead mines of Glamorgan and Gwent, D Gordon Tucker, Glamorgan Local History Society 1976
Bristol Exploration Club, Caving Report No 15, N W and J P Tuck, c1965
South Wales Caving Club, Newsletters Nos 19, 49 and 63
Peak District Mines Historical Society, Bulletin Vol 6 No1, The lead mines of SouthEast Wales, M & G Tucker, May 1975
Northern Mines Research Society, British Mining No 18, The Non-ferrous mines of South Wales, J R Foster-Smith, 1981
